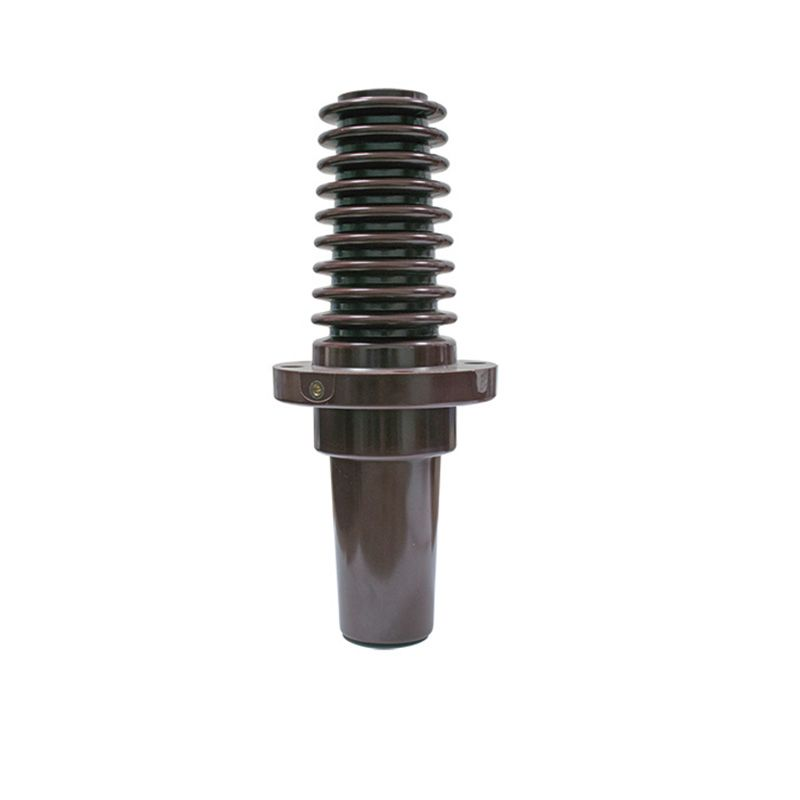

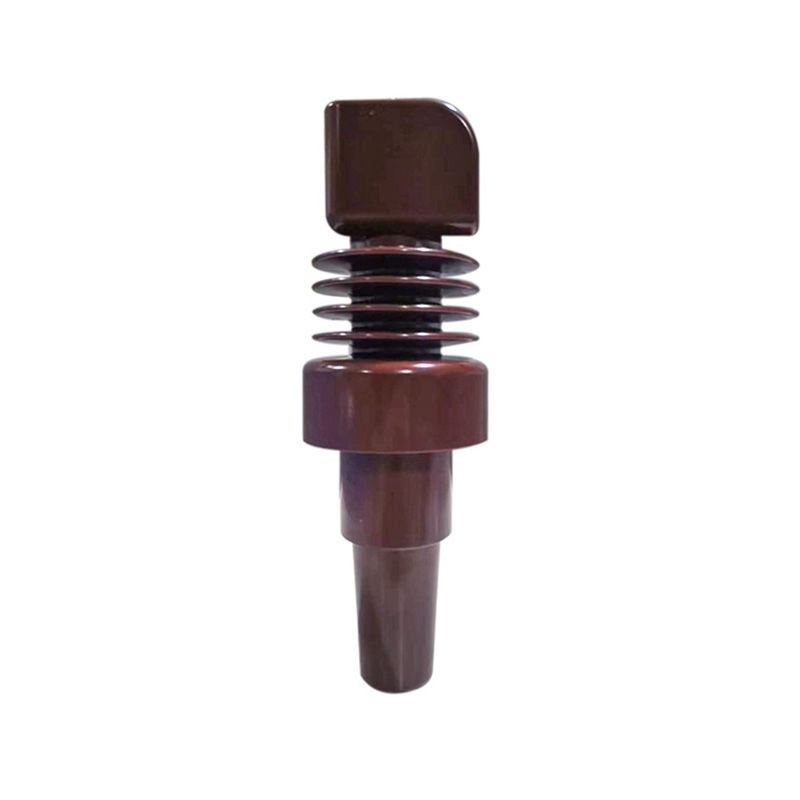

260 Bushing
The 260 bushing provides an insulated conductor interface through a partition, with flange, terminal and mating geometry requiring coordinated selection.
Technical Description
The 260 bushing provides an insulated conductor interface through an equipment partition. Review flange holes, terminals on both sides, mounting orientation and the available spaces on the air and equipment sides. The number does not establish a length or a standardized connector interface. State whether the conductor, seals and fasteners are included. Current requirements must be checked for the conductive assembly and its installation conditions.
Technical specifications
| Parameter | Value / conditions |
|---|---|
| Catalog rated voltage | 12 kV |
| Catalog rated current | 1250 A |
| Power-frequency withstand voltage (1 min) | 48 kV / 1 min |
| Partial discharge at stated test voltage | ≤ 5 pC at 14.4 kV |

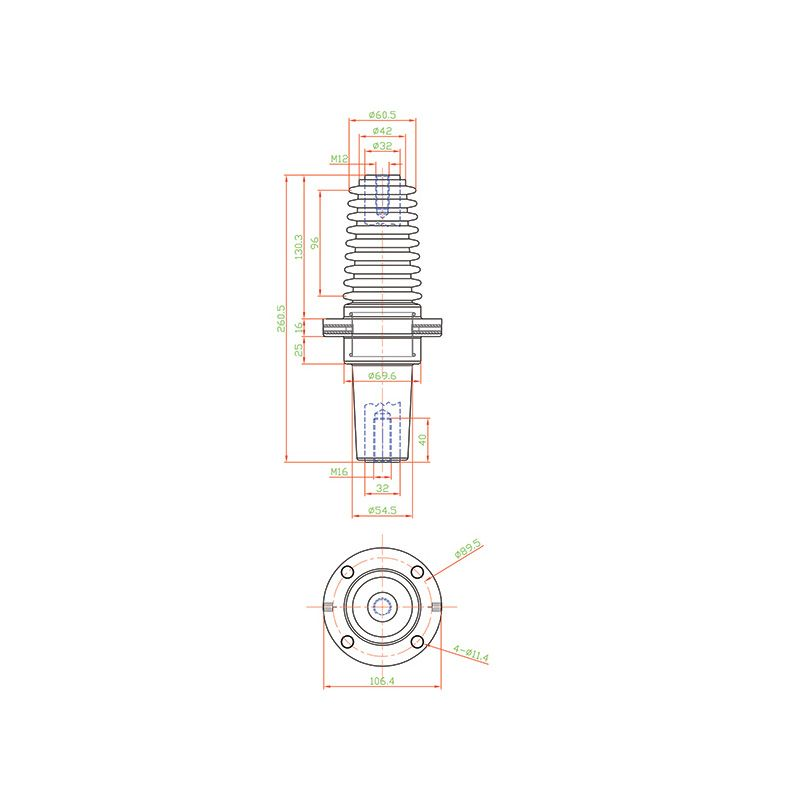

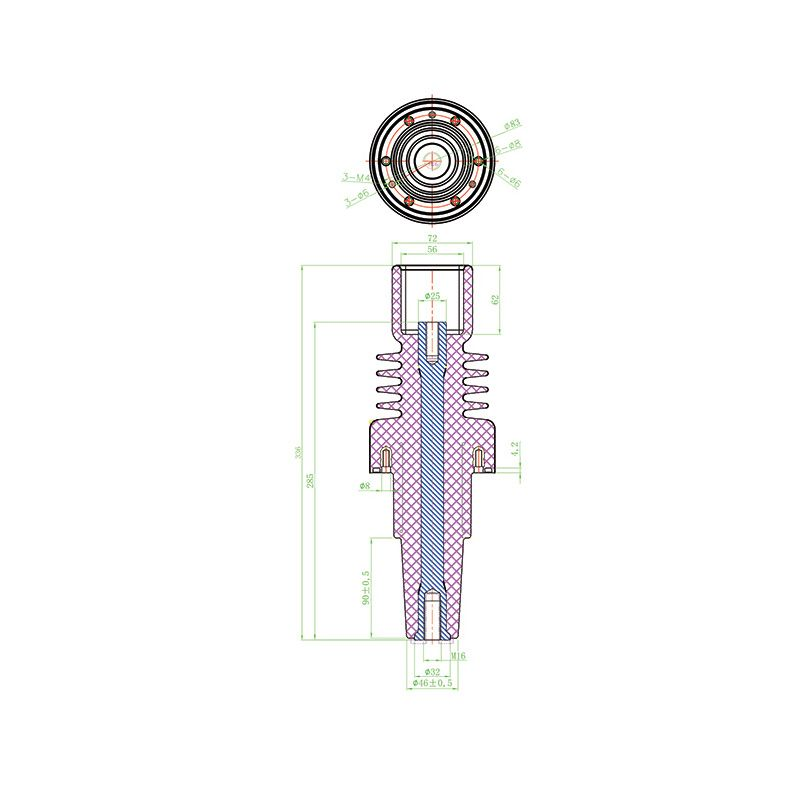

Values apply to the listed configuration. Use the matching drawing when specifying interfaces.
