Busbar Socket
An insulated socket for a matched busbar connection, selected by contact geometry, insertion depth, retention and equipment layout.
Technical Description
This socket provides a mating interface for busbar connections in matched equipment. Select the contact and insulation arrangement together with the matching busbar connector. Review insertion depth, contact-force requirements, retention, phase layout and any screening or earthing provisions. Distinguish the socket body, conductive parts and busbar connection assembly in supply. Confirm connection accessories and any project-specific inspection documentation during selection.
Technical specifications
| Parameter | Value / conditions |
|---|---|
| Catalog rated voltage | 12 kV |
| Catalog rated current | 630 A |
| Power-frequency withstand voltage (1 min) | 45 kV / 1 min |
| Partial discharge at stated test voltage | ≤ 5 pC at 14.4 kV |

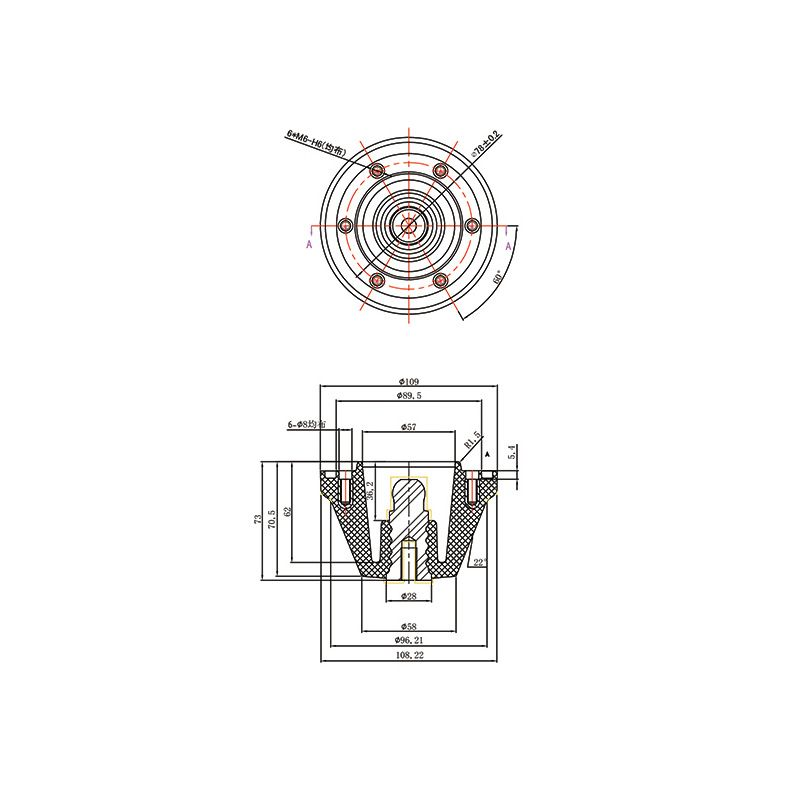

Values apply to the listed configuration. Use the matching drawing when specifying interfaces.
