Product Details
5/8-11 UNC-2B Insulating Plug
An insulating plug for a matching socket or bushing interface, with its termination, connection or test function to be established from the assembly drawing.
Technical Description
This insulating plug has a threaded connection feature. Its matching socket and intended function must be established from the associated assembly. Check cone geometry, insertion depth, thread form and fastening requirements, distinguishing insulating closure from conductive or test functions. Define the insulating body, threaded parts and accessories supplied. Appearance alone does not establish suitability for energized connection, touch-safe operation or earthing, and those functions require specific supporting information.
Technical specifications
| Parameter | Value / conditions |
|---|---|
| Drawing thread designation | 5/8-11 UNC-2B |
Values apply to the listed configuration. Use the matching drawing when specifying interfaces.

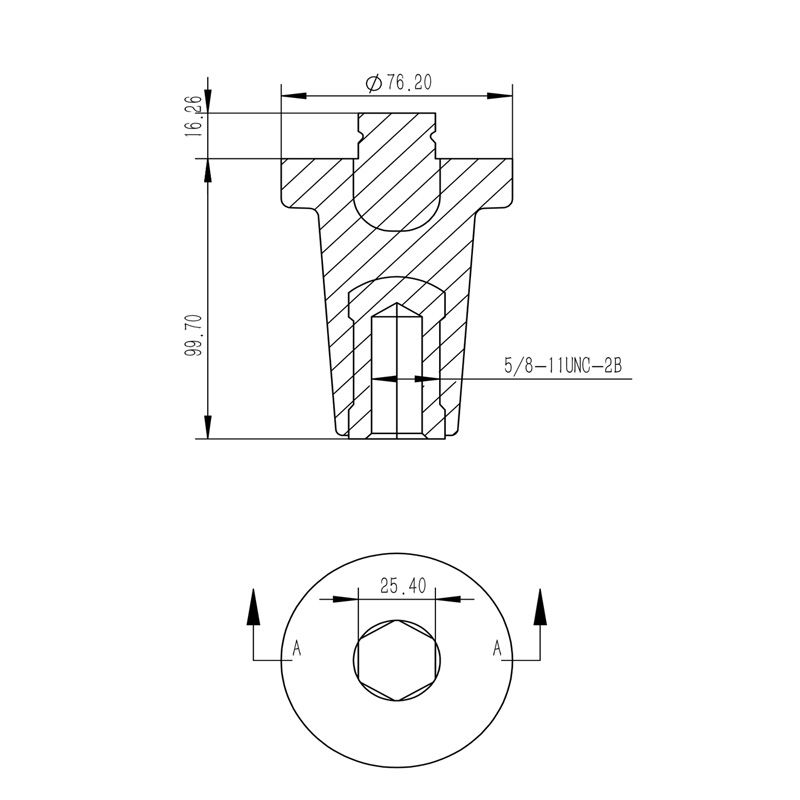

Product illustration; not a product photograph.
