Equipment Bushing
An equipment bushing for insulated conductor connections, requiring confirmation of the insulation construction and service medium before matching terminals and seals.
Technical Description
This equipment bushing provides an insulated conductor connection through a mounting boundary. Its insulation and sealing arrangement must suit the conditions on both sides. Confirm the insulating material, any contact with insulating oil, the equipment-side medium and sealing requirements before checking terminals, flange dimensions and the mounting opening. Define the body, conductor and seals supplied. Replacement selection requires matching mechanical interfaces, insulation requirements and compatibility with the service medium.
Technical specifications
| Parameter | Value / conditions |
|---|---|
| Catalog rated voltage | 24 kV |
| Catalog rated current | 250 A |
| Power-frequency withstand voltage (1 min) | 68 kV / 1 min |

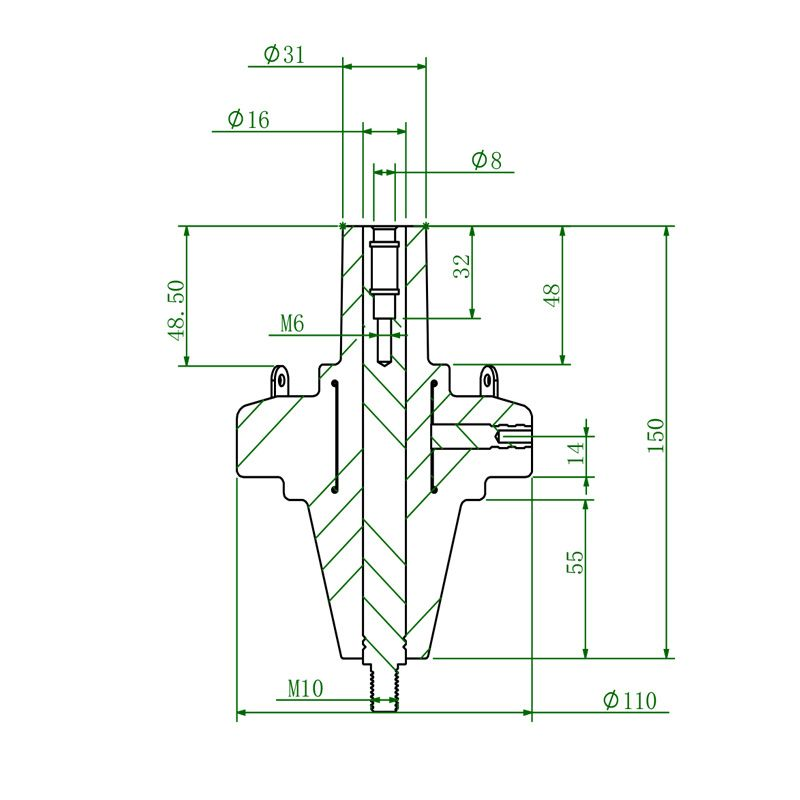

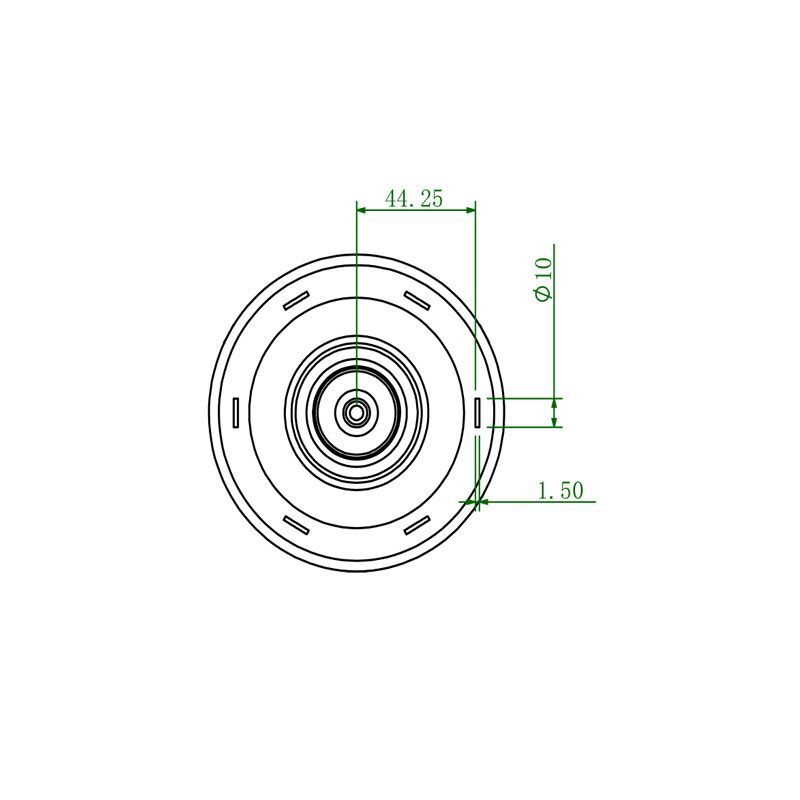

Values apply to the listed configuration. Use the matching drawing when specifying interfaces.
Product illustration; not a product photograph.
