35 kV Insulating Plug
An insulating plug for a matched socket or bushing, selected by body length, cone geometry and threaded interface.
Technical Description
Match this plug's body length and interface profile to the intended assembly. Match it to the corresponding socket or bushing by checking insertion depth, end threads, insulation distances and the intended closure or connection function. Similar appearance is insufficient for replacement selection. List the body, metal connection parts and installation accessories separately. The applicable voltage range and operating conditions must come from documentation for the matching assembly.
Technical specifications
| Parameter | Value / conditions |
|---|---|
| Catalog rated voltage | 35 kV |
| Power-frequency withstand voltage (1 min) | 70 kV / 1 min |

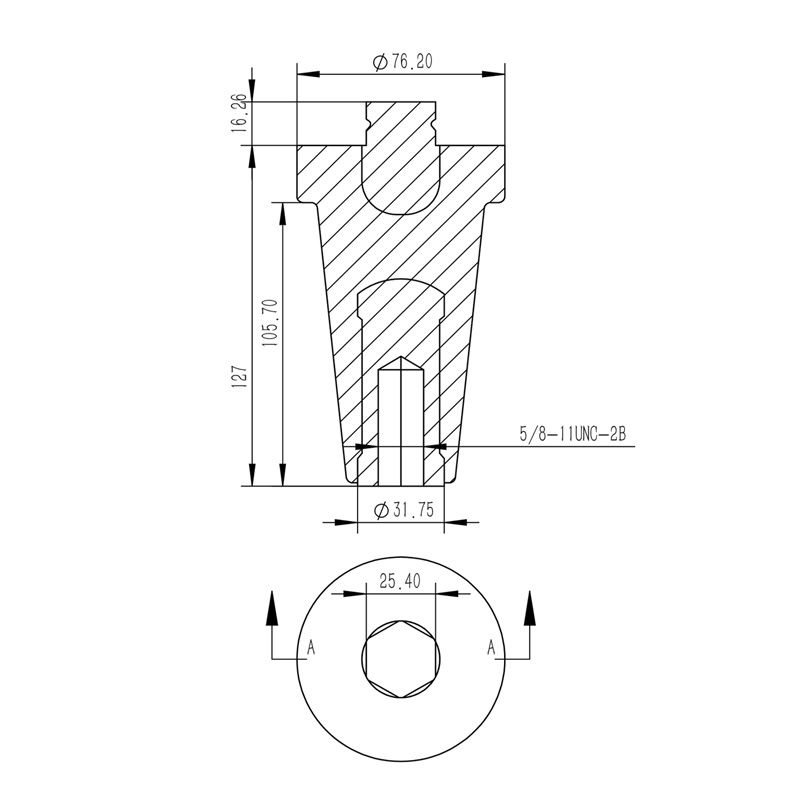

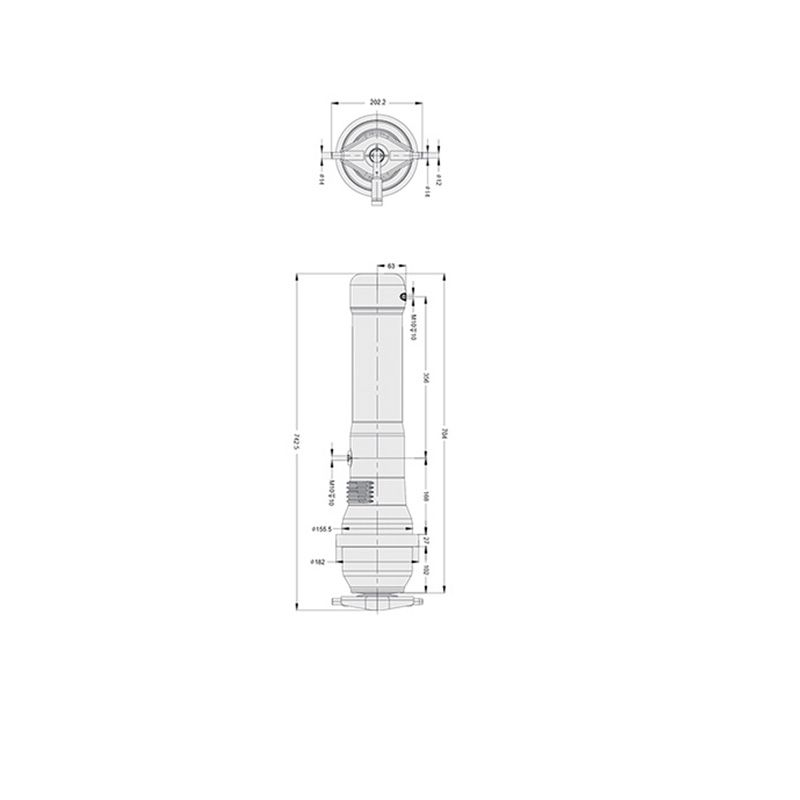

| Drawing thread designation | 5/8-11 UNC-2B |
Values apply to the listed configuration. Use the matching drawing when specifying interfaces.

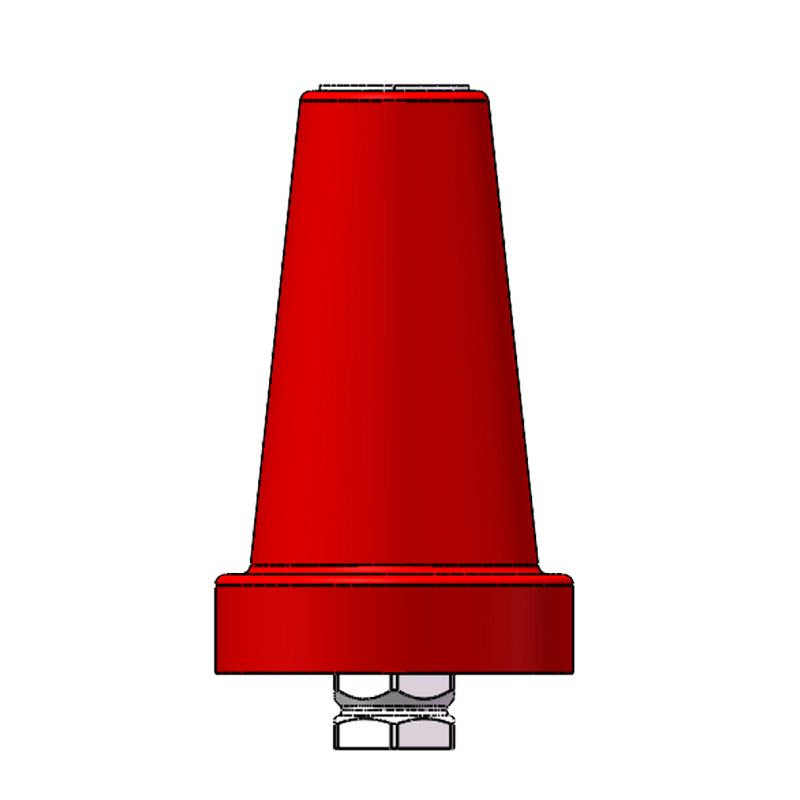

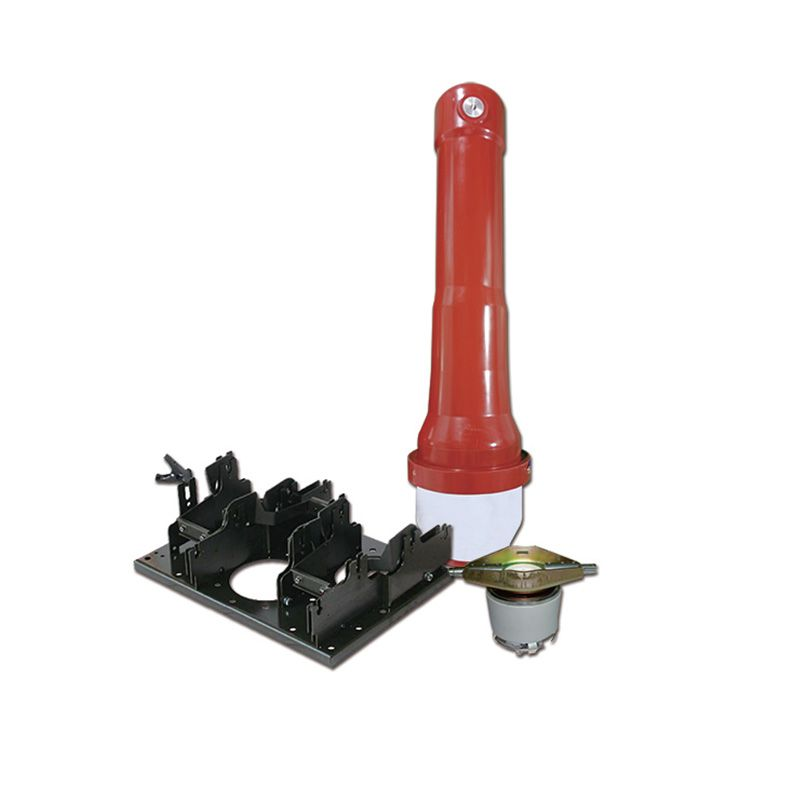

Product illustration; not a product photograph.
