Product Details

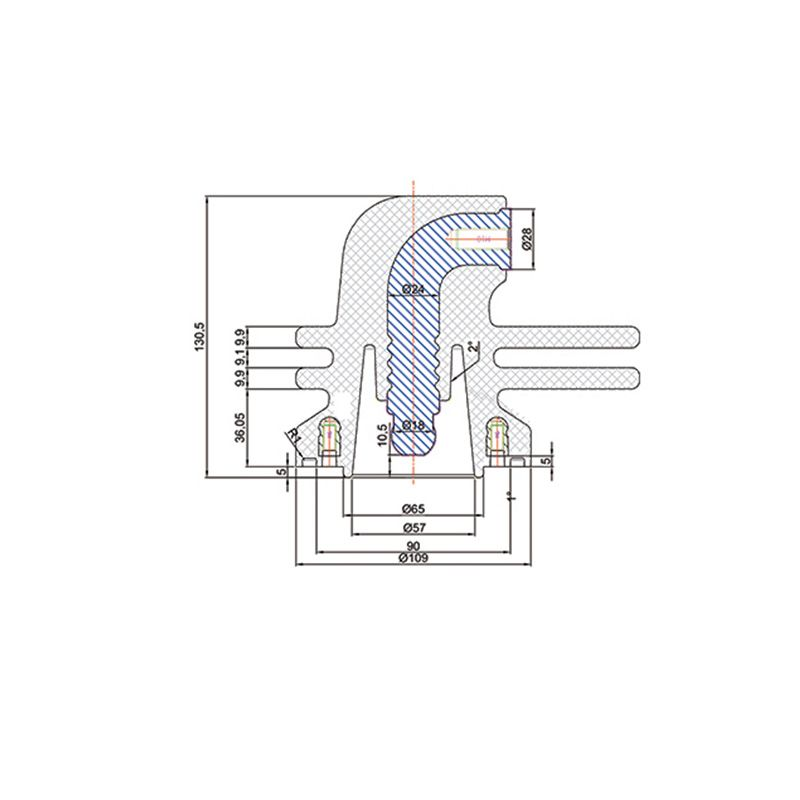

Special-Shape Inner-Cone Bushing
An inner-cone bushing with a special connection layout, intended for selection against a specified enclosure space and connection direction.
Technical Description
This special-shape inner-cone bushing has a connection layout distinct from a straight configuration. Match it to the enclosure layout by checking the cone interface, conductor direction, flange mounting and surrounding insulation space. Identify the equipment's internal medium and operating environment. The supply scope should distinguish the body, conductor connection and seals. Materials and seals must be compatible with the specified equipment medium and environment.
Technical specifications
| Parameter | Value / conditions |
|---|---|
| Catalog rated voltage | 12 kV |
| Catalog rated current | 630 A |
| Power-frequency withstand voltage (1 min) | 48 kV / 1 min |
| Partial discharge at stated test voltage | ≤ 5 pC at 14.4 kV |
Values apply to the listed configuration. Use the matching drawing when specifying interfaces.
