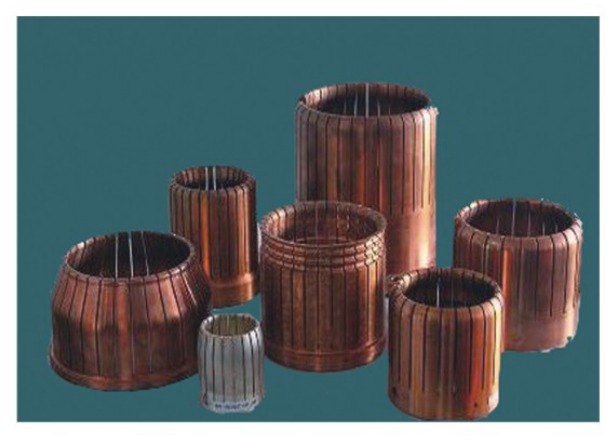

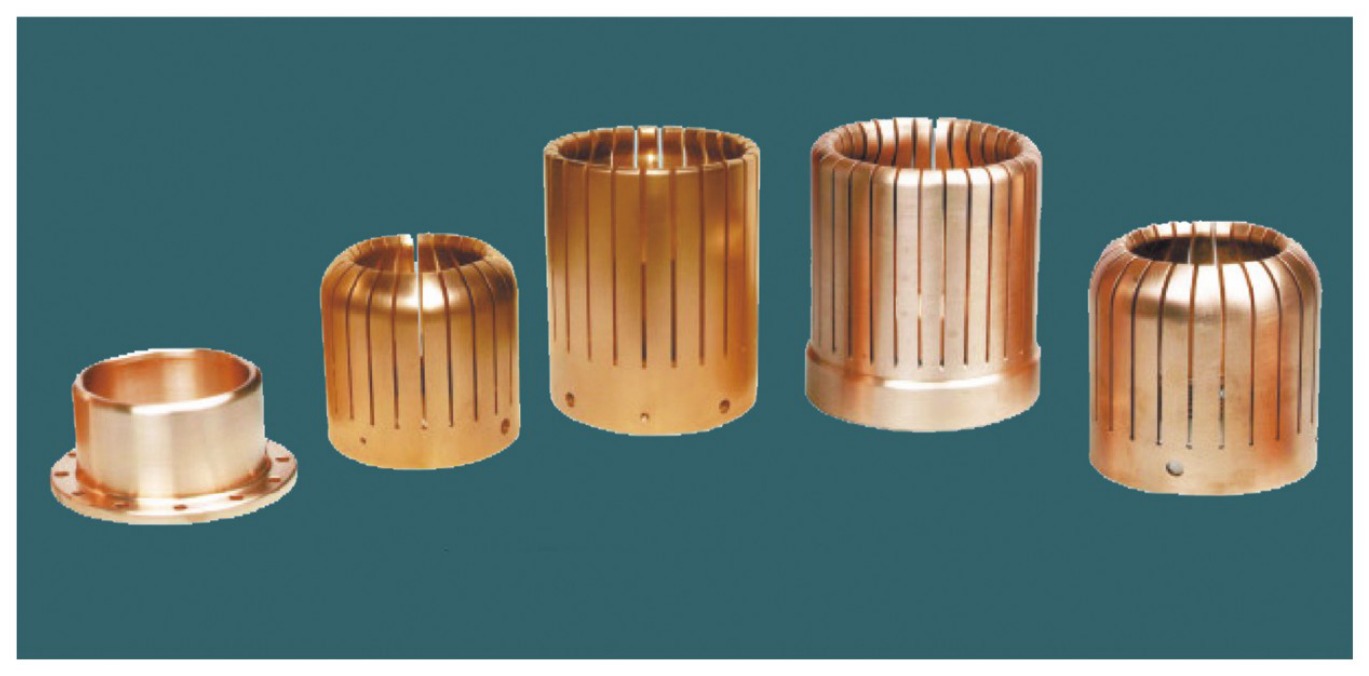

Bronze Precision Machined Component

Bronze precision part is the catch-all listing for bronze components that don't fit the standard form factors, bushing, contact finger, ring, commutator plate. If you have a drawing for a bronze geometry that's specific to your switchgear or assembly design, this is the right starting point.

Custom bronze parts cover a wide range of MV switchgear applications: spring carriers, terminal blocks, conductor adapters, mounting brackets that need bronze's conductivity and corrosion resistance, and the dozens of small machined parts in any modern switchgear assembly.

Specifications

Property	Value
Alloy Options	Aluminum bronze C95400 / C95500 / C95800
	Phosphor bronze C51000 / C52400
	Brass C26000 / C28000
	Silicon bronze C65500 (on request)
Form	Per drawing
Maximum Part Size	Limited by machining envelope; contact us for specifics
Achievable Tolerance	Standard machining tolerance; tight tolerance on request
Features Supported	Holes, threads, slots, steps, profiles, polished finishes
Surface Treatment	As machined; silver plating, polishing, or passivation optional

Exact certified properties for your lot are available with material documentation on request.

Applications

• Custom bronze geometries for MV switchgear OEMs with proprietary designs
• Replacement parts where the original SKU isn't cataloged and only the drawing or sample exists
• Specialized bronze components for non-standard switchgear applications
• One-off bronze parts for prototyping and engineering samples

Technical Notes

Bronze machining is CNC-friendly with carbide tooling. The alloys behave differently, phosphor bronze cuts cleanly, aluminum bronze is harder and slower, brass is the easiest to machine. Tolerance achievable depends on the alloy and the part complexity; standard machining tolerance covers most switchgear applications, with tighter tolerance possible for critical features.

For complex parts, we offer a design-for-manufacturability review before tooling. Submit your drawing and we'll flag any features that would benefit from a small geometry change, usually saving cost and improving yield. There's no obligation if you'd prefer to machine the drawing as-is.

For prototypes, single-piece orders are routine but disproportionately expensive per part compared to small-batch runs. If you're prototyping with intent to move to production, ordering a small batch (e.g. 10–20 pieces) is often more cost-effective.

Sourcing & OEM

Send drawings in DXF / PDF / STEP format with target quantity and alloy preference. We'll confirm feasibility, recommend any geometry tweaks, and quote.
